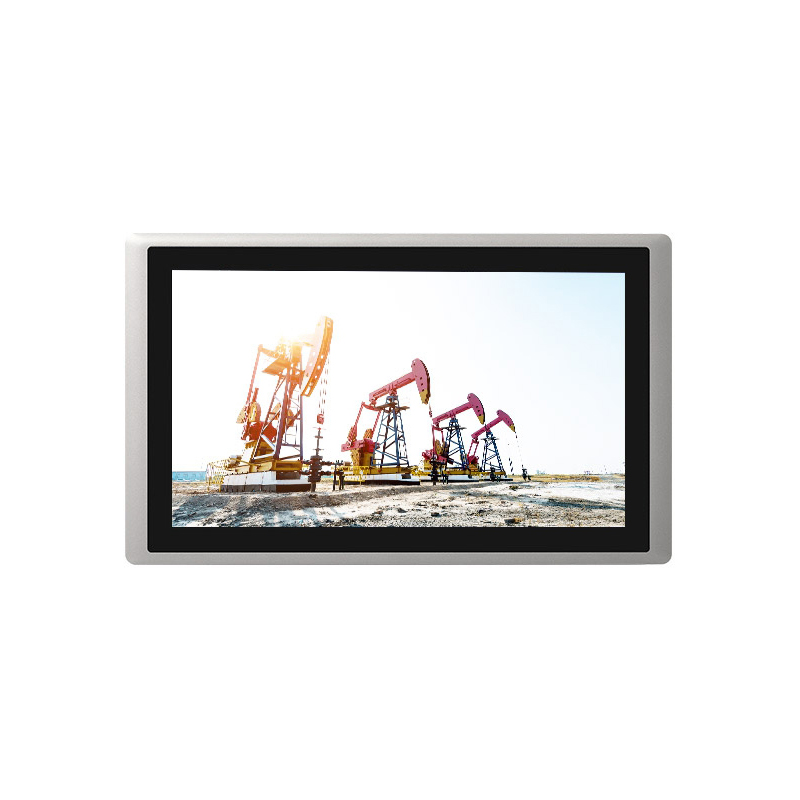

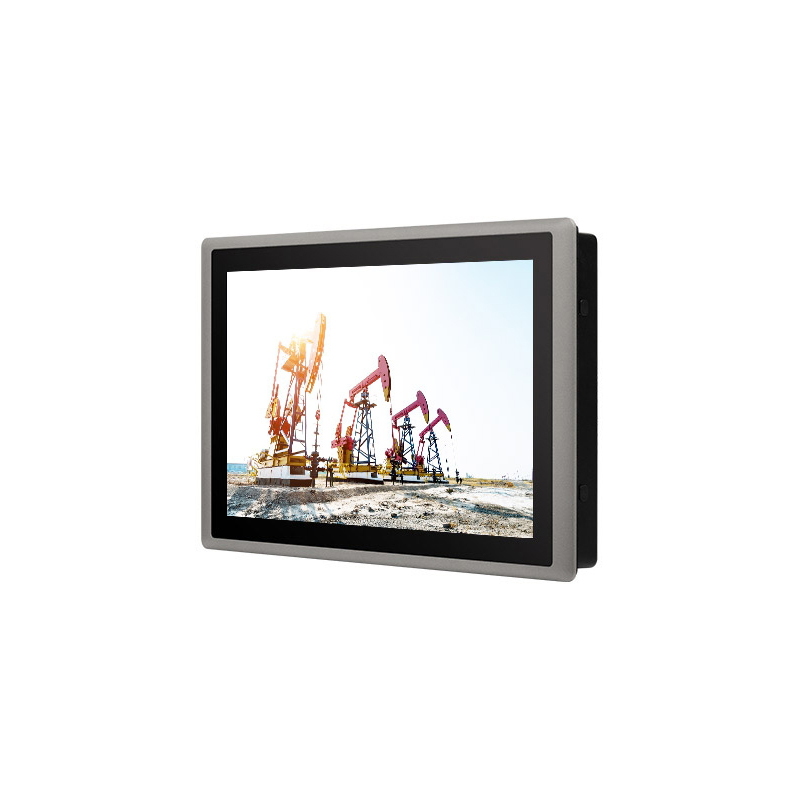

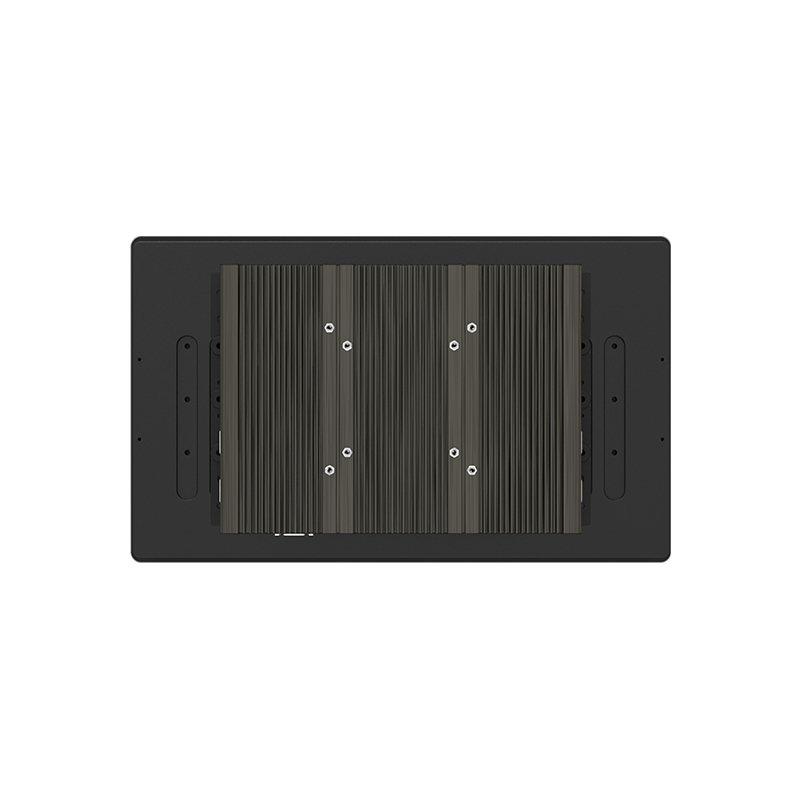

Cincoze® P2000 Series Panel PC
Product Series: P2000

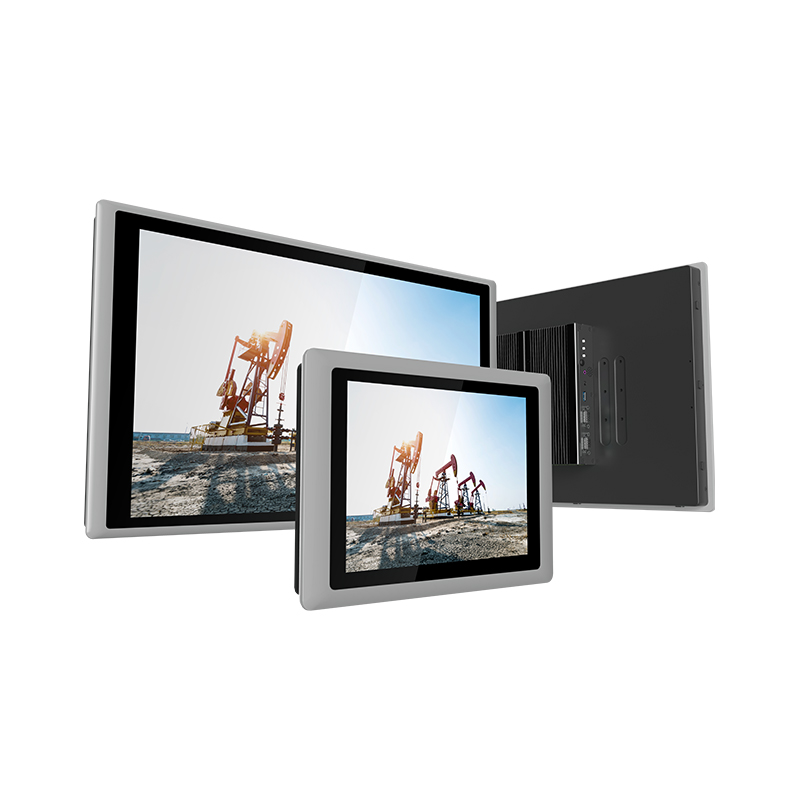

The Cincoze P2000 Series is a modular industrial panel PC platform designed for high-performance computing in rugged environments. Built around Intel® 6th Gen Core™ U-series processors, the P2000 Series offers fanless operation, wide temperature tolerance, and a flexible I/O architecture. With support for Cincoze’s Convertible Display System (CDS) technology, users can pair the P2000 embedded computer with a variety of display modules ranging from 12.1" to 24", available in capacitive, resistive, or non-touch options—including both standard and sunlight-readable brightness for indoor or outdoor deployment. Optional PCI/PCIe expansion, PoE, and ignition control modules make the P2000 Series ideal for applications in industrial automation, transportation, and machine vision.
- Intel® Core™ i5-6300U or i3-6100U processors (15W TDP)
- Capacitive, resistive, and non-touch options from 12.1" – 24"
- Choose from standard or sunlight-readable brightness
- Operates fanless in wide temperature ranges (−25°C – 70°C)
- Supports PCI/PCIe, PoE, Mini-PCIe, and ignition control
Processor
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
Operating System
Windows® 10/11
Ubuntu® Linux
Memory
(2) DDR4 2133 MHz SO-DIMM, Up to 32GB
Storage
(2) 2.5″ SATA HDD/SSD Bays (RAID 0/1)
(2) mSATA Slots
(1) CFast Socket
Display Options
12.1″ to 24″ TFT-LCD
Standard or sunlight-readable
Capacitive, resistive, or non-touch
Graphics Output
(1) VGA
(1) DVI-D Supports 3x Independent Displays
USB Ports
(4) USB 3.2 Gen1 Type-A
(1) USB 2.0 Type-A
LAN Ports
(2) GbE LAN (Intel® I219LM + I210)
Serial Ports
(6) RS-232/422/485 with Auto Flow Control
Digital I/O
(16) Isolated DIO (8 in / 8 out)
Expansion Slots
(2) Full-Size Mini-PCIe Sockets
(1) PCI or PCIe x4 Slot (P2002E models)
Power Input
9–48V DC Ignition Control Support
Certifications
CE FCC UKCA ICES-003 Class A EN 61000-6-2/4
Mounting Options
Wall mount
VESA mount
CDS (Convertible Display System)
Dimensions
254.5 x 220 x 54 mm (P2002)
254.5 x 220 x 72 mm (P2002E)
Weight
2.92 kg (P2002)
3.18 kg (P2002E)
Operating Temperature
−25°C – 70°C (with extended temperature peripherals)
Reliability Features
Fanless design SuperCap for CMOS backup
Instant reboot support (0.2 sec)
