Cincoze® M1101 Monitor Module
Product Series: M1101
The Cincoze M1101 is a robust monitor module designed to meet the demanding requirements of industrial environments. Featuring Cincoze's patented Convertible Display System (CDS) technology, the M1101 allows seamless integration with various display modules, enabling flexible configurations tailored to specific application needs. Whether for factory automation, outdoor kiosks, or embedded systems, the M1101 delivers reliable performance with its durable construction and versatile connectivity options.
- HDMI, DP, and VGA video input support
- Supports up to Full HD 1920x1080 resolution
- CDS modular design for flexible integration
- Optional resistive or capacitive touchscreen
- Wide operating temperature (-20°C – 70°C)
- Rugged aluminum and metal housing
- USB, RS-232, audio, and speaker support
- Ideal for panel PC or standalone monitor use

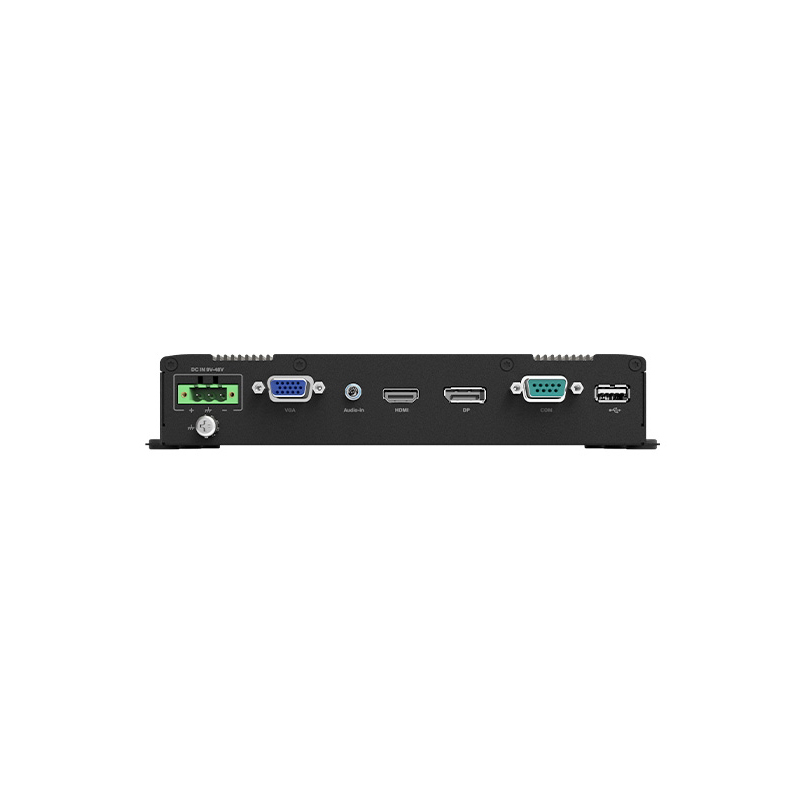

Graphics
(1) HDMI Connector (1920 x 1080 @60Hz)
(1) DisplayPort Connector (1920 x 1080 @60Hz)
(1) VGA Connector (1920 x 1080 @60Hz)
Audio
Audio Line in, Phone Jack 3.5mm
I/O
(1) RS-232, DB9
(1) 480Mbps USB 2.0, Type A
Other Function

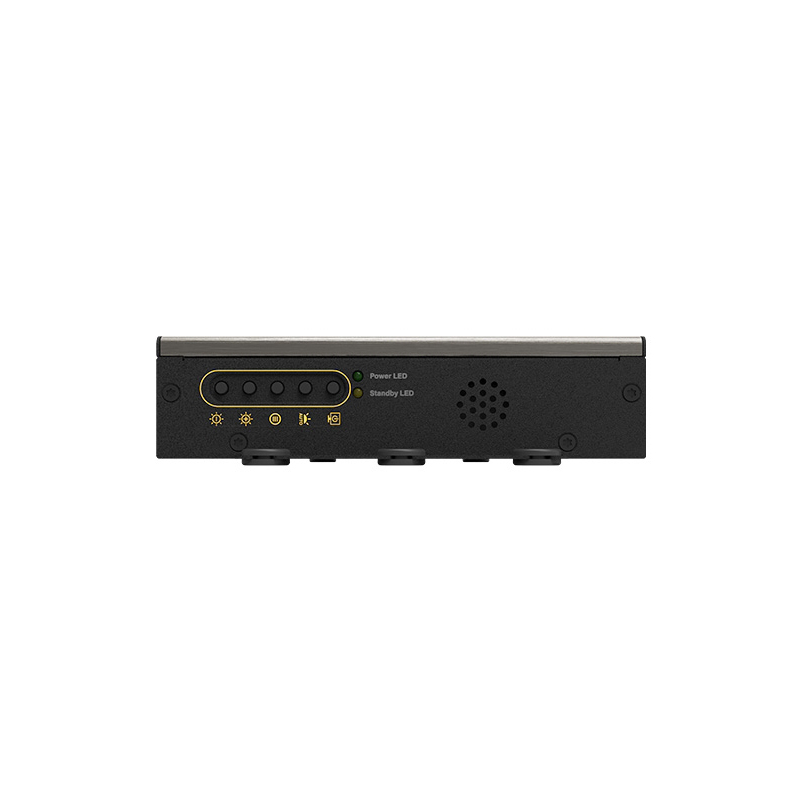

OSD Button Menu, Auto, LCD On/Off, Brightness Up/Down
Internal Speaker AMP 2W + 2W
Status LED Indicator Power LED, Standby LED
Power
9 – 48V DC, 3-pin Terminal Block

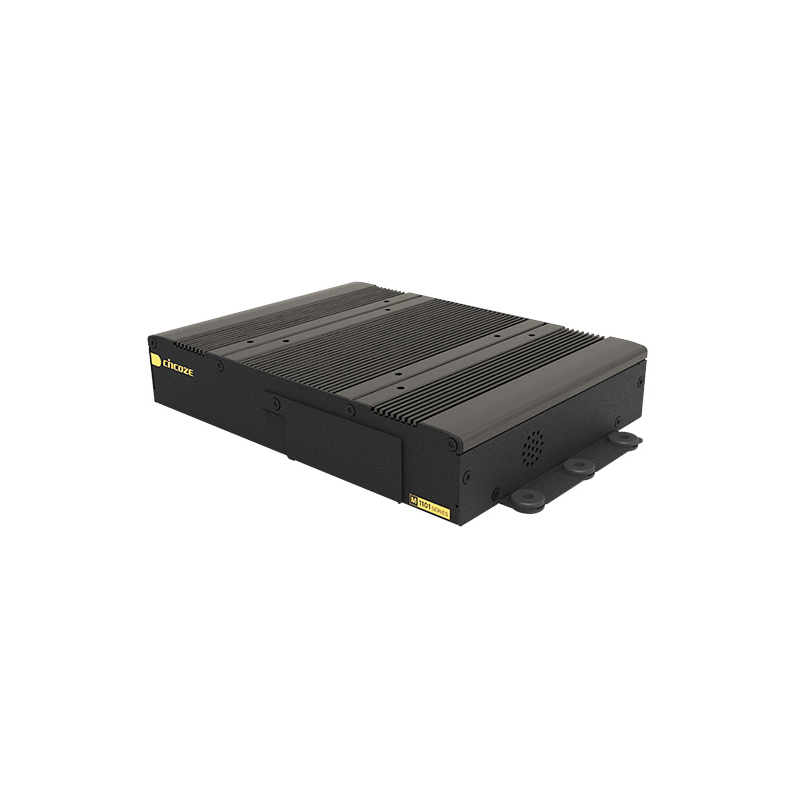

Physical
Dimensions (W x D x H): 204.5 x 149 x 38.5 mm
Weight: 1.2 kg
Construction: Extruded Aluminum
Mounting: VESA / CDS Mounting
Physical Design: Fanless, Jumper-less
Reliability + Protection
Reverse Power Input Protection: Yes
Over Voltage Protection: 51~58V
Over Current Protection: 15A
MTBF: 1,217,359 hrs – Database: Telcordia SR-332 Issue 3, Method 1, Case 3
Environment
Operating Temperature: -20°C – 70°C
Storage Temperature: -20°C – 75°C
Relative Humidity: 95%RH @ 70°C
(non-condensing)
Shock: Operating, 15 Grms
(according to IEC60068-2-27)
Vibration:
- Operating, 1.5 Grms, 5-500 Hz, 3 Axes (according to IEC60068-2-64)
- Operating, 1 Grms, 10-500 Hz, 3 Axes (according to IEC60068-2-6)
Safety: UL, cUL, CB, IEC, EN 62368-1
