NVIDIA® Jetson™ Orin™ NX/Nano AI PC
Product Series: PE1100N

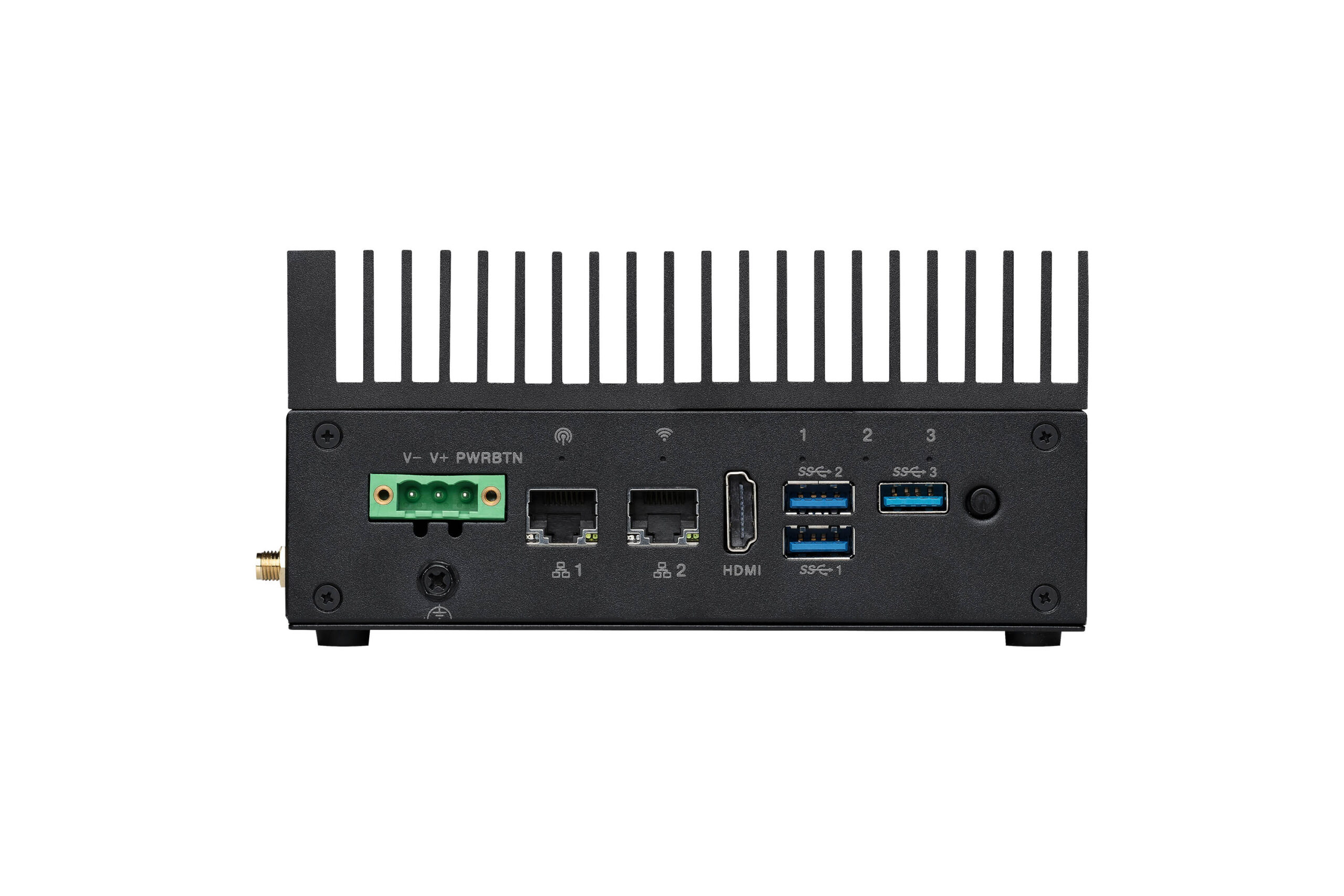

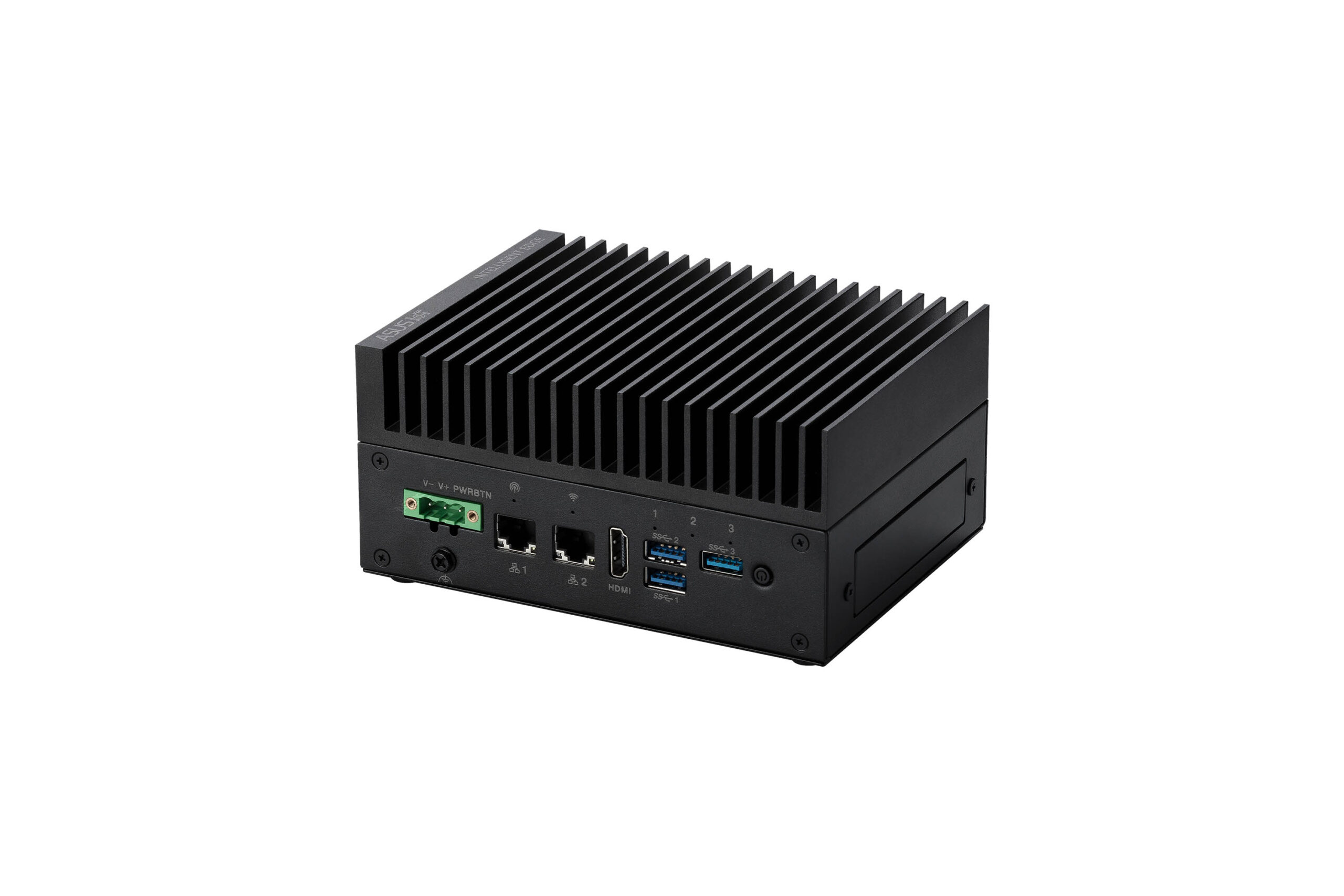

The ASUS IoT PE1100N is an ultra-compact, fanless edge AI computer based on the NVIDIA® Jetson™ Orin™ platform, supporting Orin NX and Orin Nano modules. Designed for AI inferencing at the edge, it delivers up to 100 TOPS of performance within a low power envelope (10–25 W). Its compact size and robust design make it ideal for space-constrained applications such as smart manufacturing, autonomous mobile robots (AMRs), and AI-powered inspection systems.
- Powered by NVIDIA® Jetson™ Orin™ NX or Nano modules, delivering up to 100 TOPS for AI inference tasks with low power consumption.
- Ultra-compact design with fanless cooling ensures silent operation and reliability in space-constrained environments.
- Equipped with LAN, DIO, COM, USB 3.2, and Type-A ports, providing versatile connectivity for various industrial applications.
- Supports a wide operating temperature range of −20°C − 50°C and features anti-vibration design for reliable performance in harsh conditions.
- Suitable for smart city, transportation, manufacturing, and robotics applications, including AGVs, AMRs, and AI-powered inspection systems.
Processors
(1) NVIDIA® Jetson™ Orin™ NX or Nano
Memory
Up to 8GB LPDDR5
Storage
(1) M.2 2280 NVMe SSD
(1) Micro SD Slot
Expansion Slots
(1) M.2 B-Key 3042/3052 for 4G/5G
(1) Micro SIM Slot
Ethernet Ports
(2) RJ-45 10/100/1000 Mbps
USB Ports
(2) USB 3.2 Gen1 Type-A
(1) USB 2.0 Micro-USB (for debug)

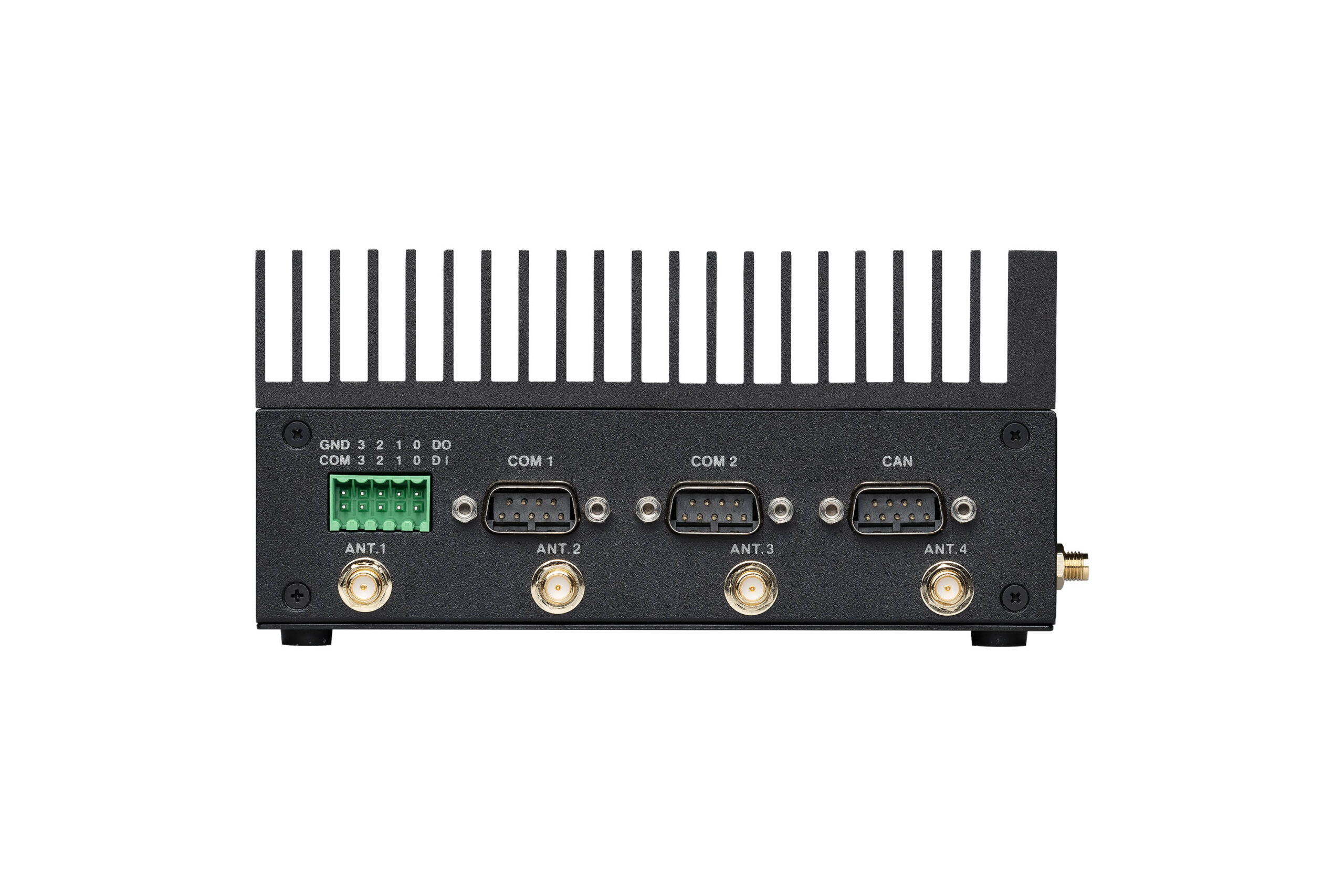

Serial Ports
(1) RS-232 DB9
(1) RS-422/485 DB9
Digital I/O
(1) 8-bit DIO
Power Input
12–24 VDC
Operating Temperature
−20°C − 50°C
Mounting Options
Wall Mount
DIN Rail
Dimensions
152 x 114 x 72 mm
Weight
1.4 kg
Certifications
CE
FCC
MIL-STD-810G
