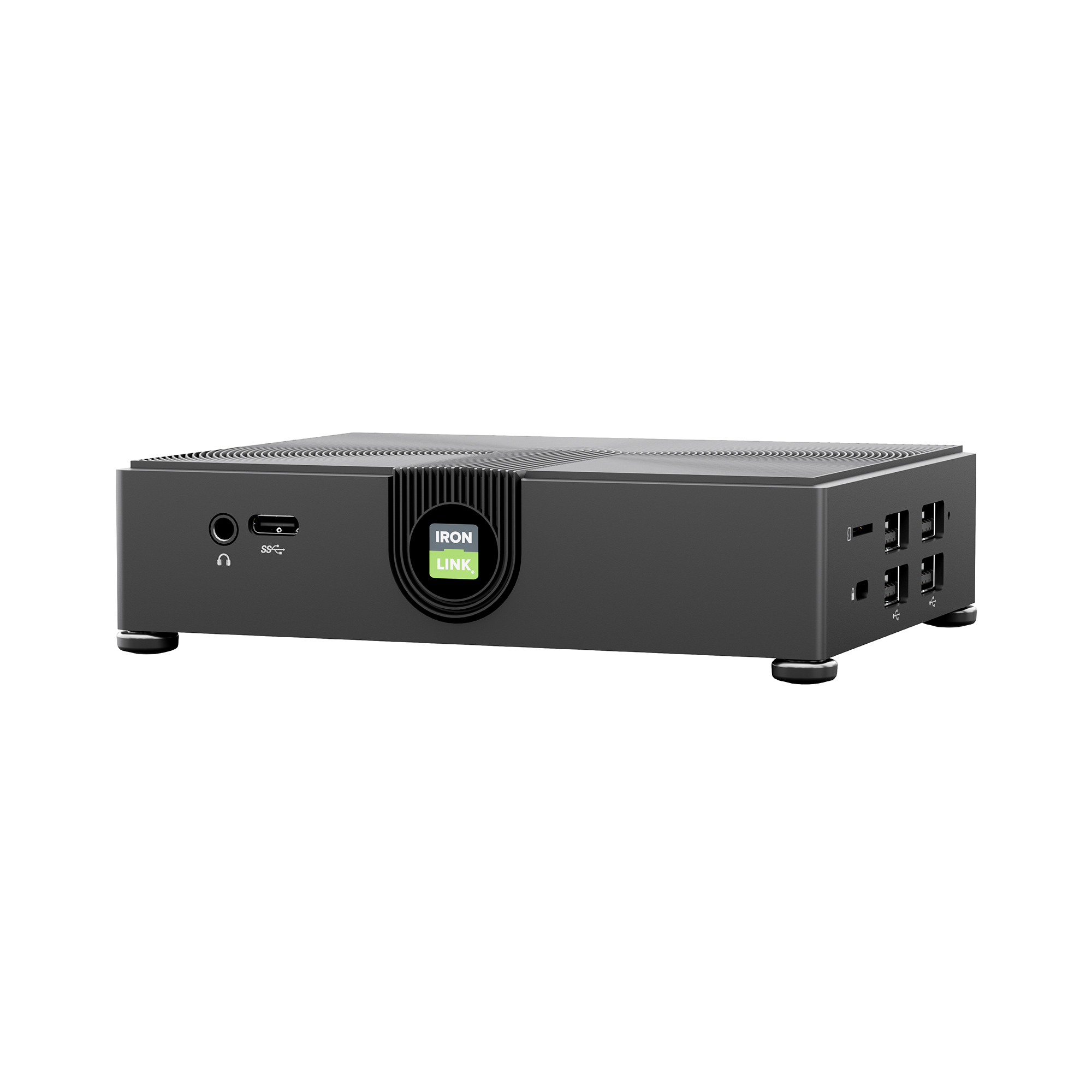

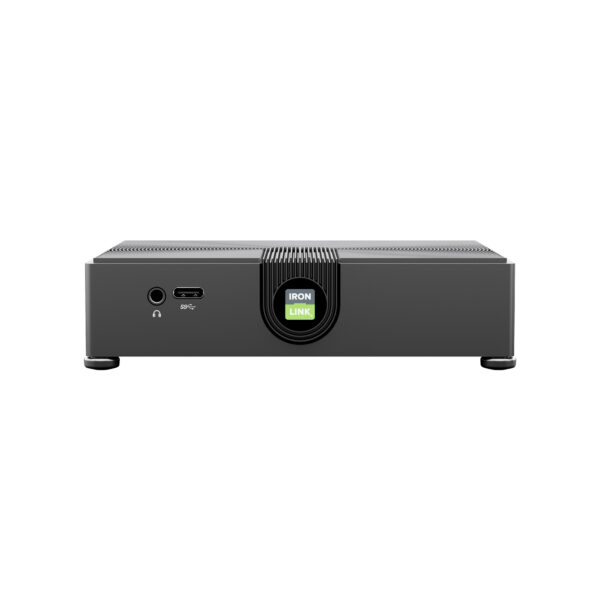

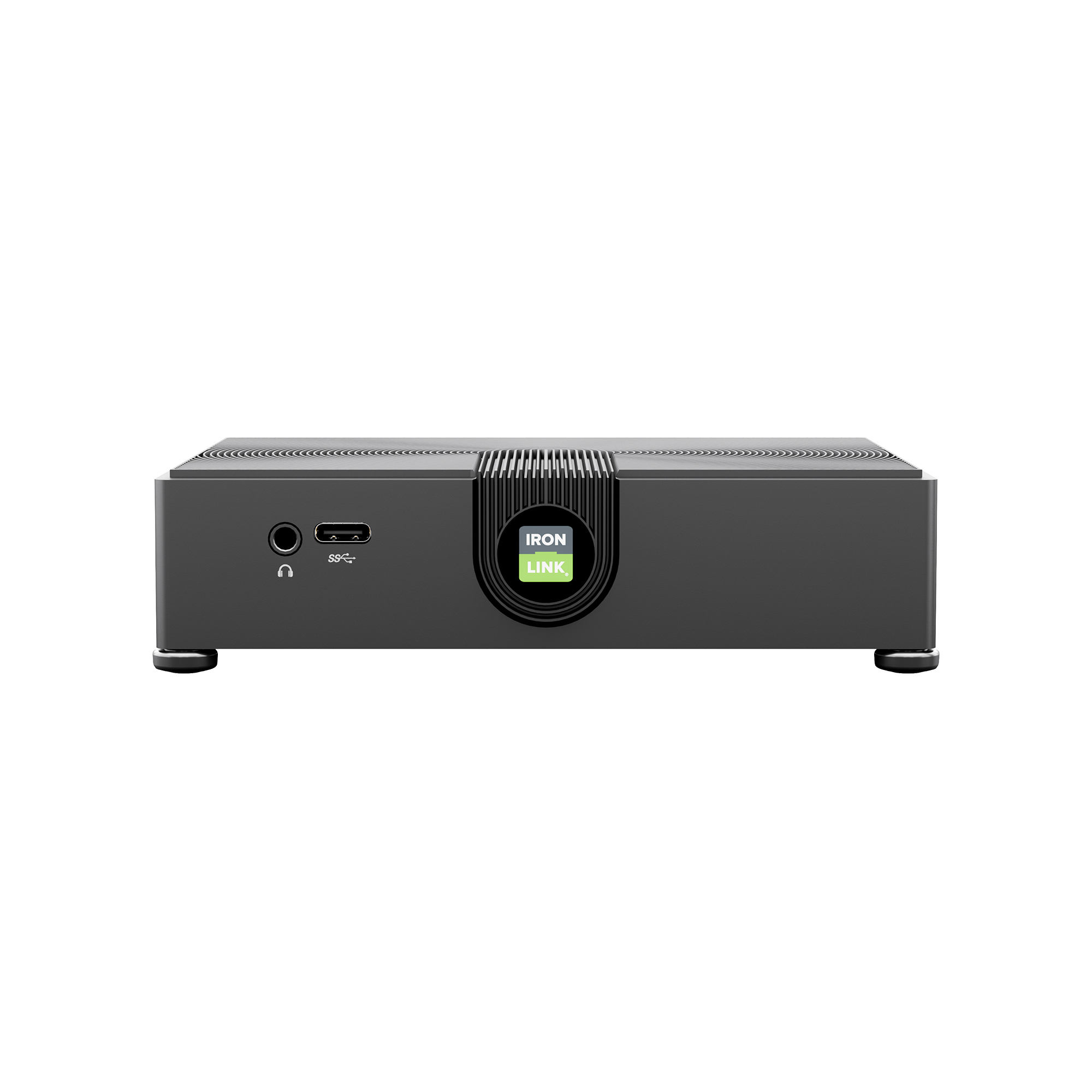

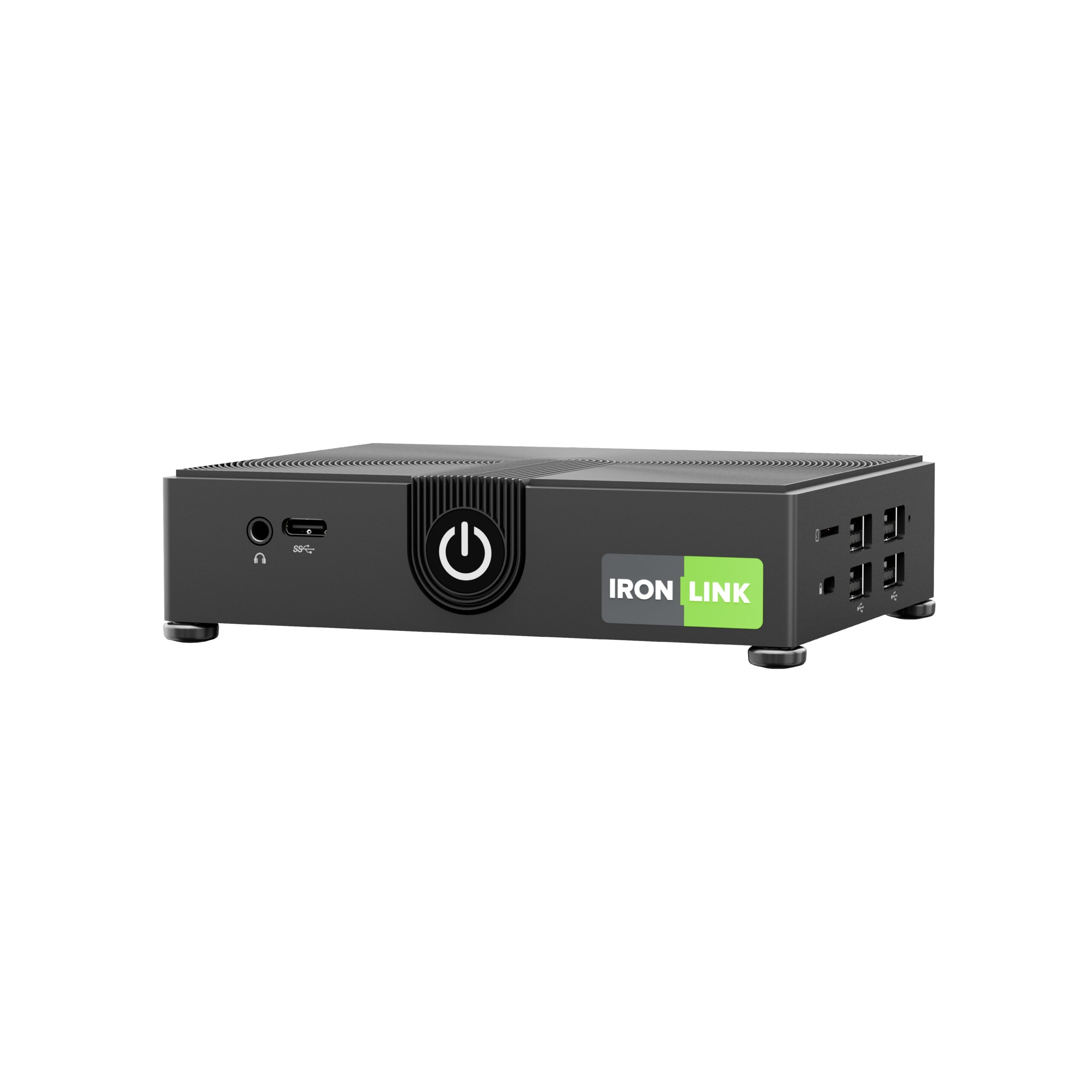

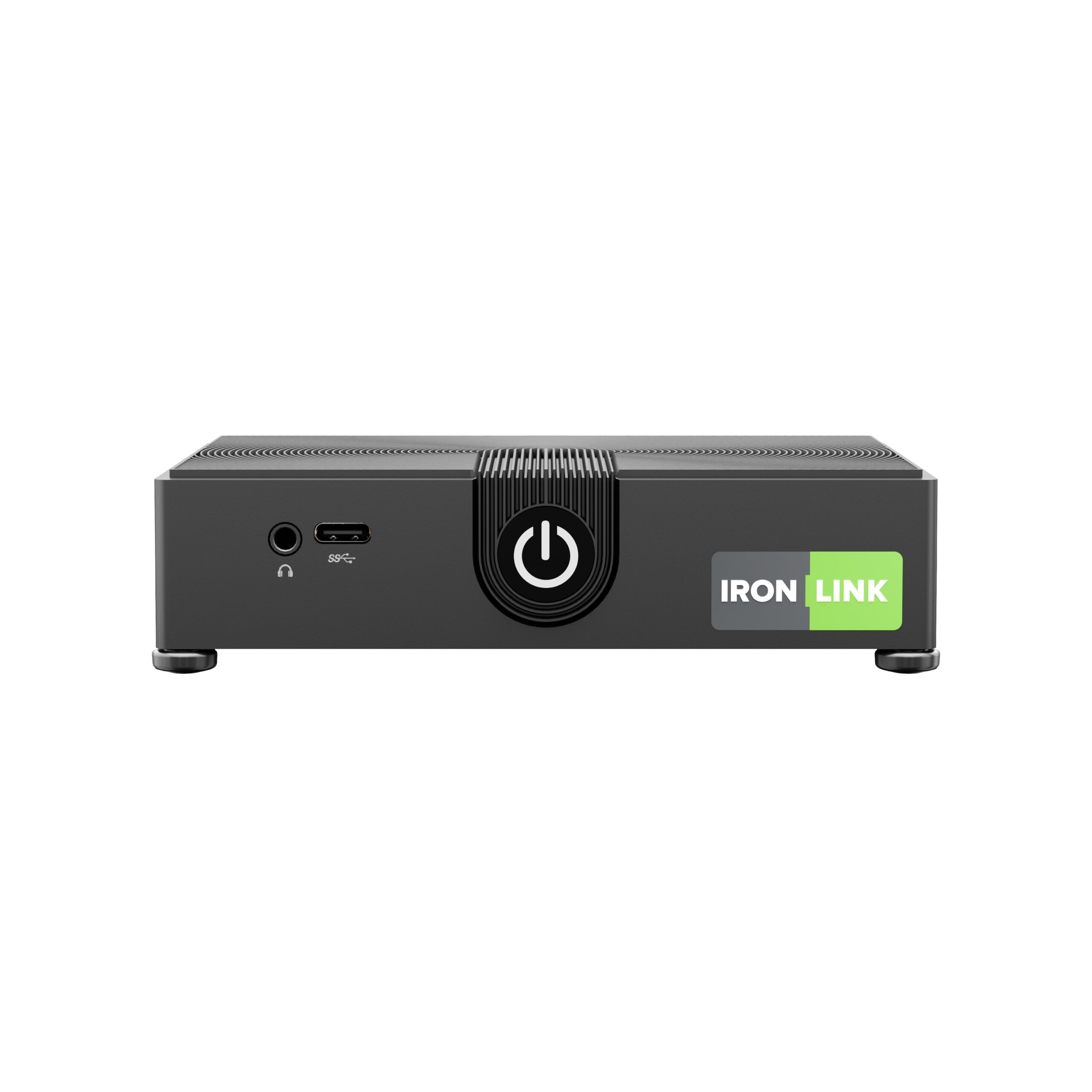

IronLink® N150 Media Player

Product Series: IL-N150

The IronLink® N150 is a purpose-built, ultra-compact PC designed for reliable 24/7 digital signage performance. Powered by the efficient Intel® N150 processor and equipped with Intel® UHD Graphics, it delivers flawless 4K video playback in a slim, fanless form factor that fits seamlessly into kiosks, behind displays, or on desktops. With built-in 128GB eMMC storage, expandable M.2 SSD options up to 4TB, and support for Windows® 10/11 IoT, Windows® 11 Pro, or Ubuntu® Linux, the N150 offers flexibility for a wide range of deployments.

  • Ultra Thin Fanless Design
  • Designed for 24/7 Operation
  • 4G/LTE or OOB Capability
  • Flawless 4K Playback
  • Flexible mounting options in a kiosk or behind a display

Storage? Sorted.

When calculating storage and performance needs for your project, it's important to know not only the available raw storage, but also the system’s usable storage. This figure accounts for how RAID configuration, disk type, formatting, and performance overhead affect real world capacity.

Get Guidance

Canopy Logo

Management? Simplified.

Velasea's exclusive collaboration with Canopy equips every IronLink® appliance with complimentary Remote Device Management software, allowing for a comprehensive overview of your entire fleet and significantly decreased downtime. Truck rolls? No, thank you!

Explore RMM

Specifications

Processors

Intel® N150 Processor

Operating System

Windows® 10 IoT
Windows® 11 IoT
Windows® 11 Pro
Ubuntu® Linux

Memory

(1) 8GB DDR5 4800 SO-DIMM

Storage

128GB eMMC Onboard
(1) M.2 2280 (256GB, 512GB, 1TB, 2TB, 4TB)

Graphics

Intel® UHD Graphics

Networking

(1) Intel® Ethernet Controller
(1) Intel® Wi-Fi 5, Bluetooth 5.1

Power Supply

19 VDC Power Adapter

Dimensions (WxDxH)

5″ x 3.9″ x 1.14″
(127 mm x 99 mm x 28.96 mm)

Operating Temperature

14°F – 122°F (-10°C – 50°C)

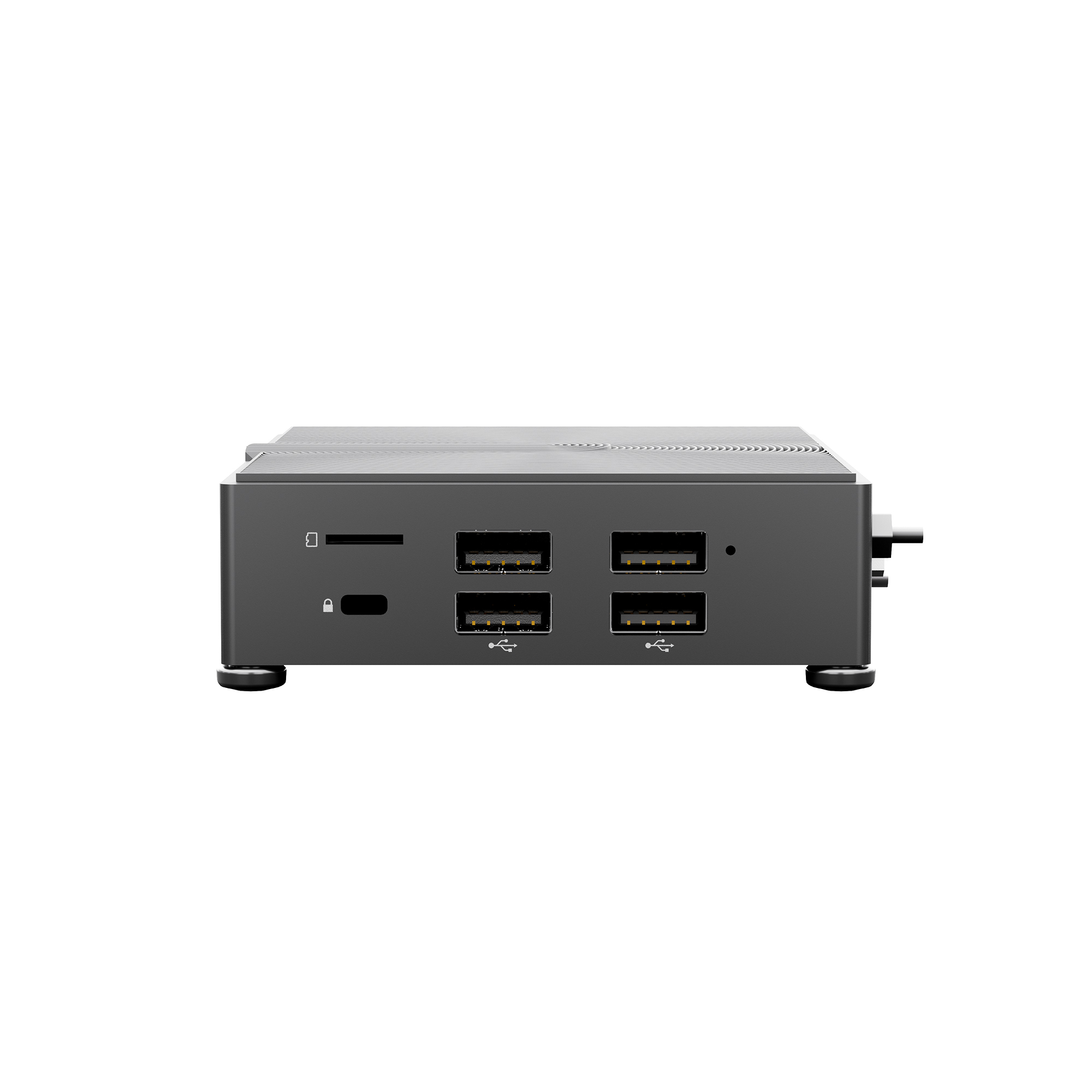

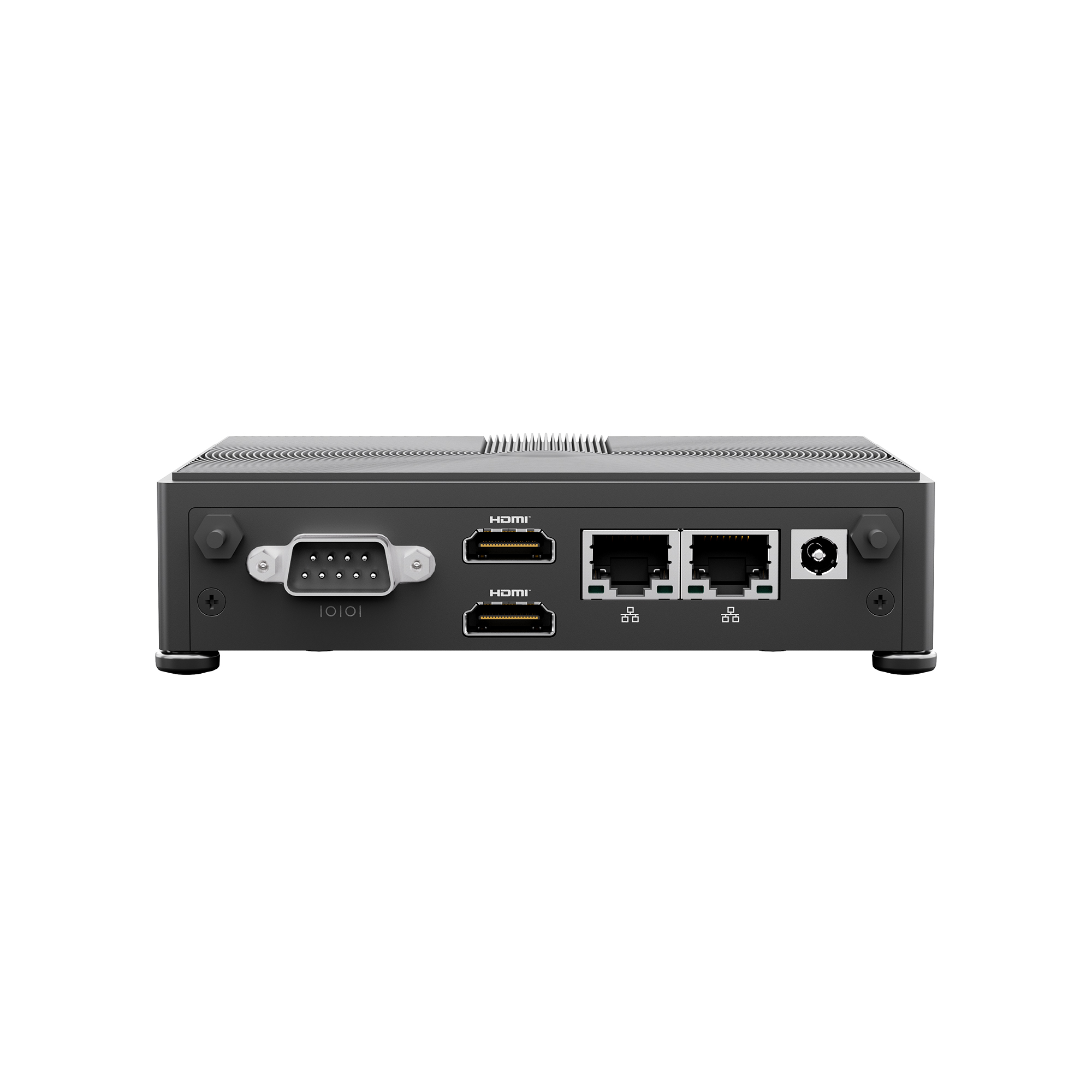

Ports/Slots

(2) HDMI® 2.1
(2) USB 3.1, Gen 2
(2) USB 2.0
(1) Micro SD Slot
(1) 3.5mm Audio Jack
(1) Locking Power Connector
(1) RS232 Serial

Warranty

3-Year Depot
