ASUS IoT NUC 15 Pro+ Mini PC
Product Series: AIOT-NUC-15-PRO-PLUS
The ASUS NUC 15 Pro+ is the high-performance evolution of the NUC 15 platform, featuring enhanced thermal design and expanded I/O for compute-intensive edge workloads. Equipped with Intel® Core™ Ultra H-series processors, this AI-enabled mini-PC delivers top-tier responsiveness across CPU, GPU, and NPU engines. Designed for multitasking, content creation, and accelerated inferencing, the NUC 15 Pro Plus supports up to four 4K displays and offers lightning-fast connectivity via dual Thunderbolt™ 4 ports. It's the ultimate choice for businesses pushing the limits of performance in a compact footprint.
- Premium AI-ready compute with Intel® Core™ Ultra H-series
- Advanced cooling for sustained high-load operation
- Dual Thunderbolt™ 4, HDMI 2.1, and USB 4 Ports
- Engineered for digital signage, edge AI, and visual computing
- Preinstalled with Windows® 11 IoT or Ubuntu®
Storage? Sorted.
When calculating storage and performance needs for your project, it's important to know not only the available raw storage, but also the system’s usable storage. This figure accounts for how RAID configuration, disk type, formatting, and performance overhead affect real world capacity.
Management? Simplified.
Velasea's exclusive collaboration with Canopy equips every IronLink® appliance with complimentary Remote Device Management software, allowing for a comprehensive overview of your entire fleet and significantly decreased downtime. Truck rolls? No, thank you!
Processors
Intel® Core™ Ultra 5 225H
Intel® Core™ Ultra 7 255H
Intel® Core™ Ultra 9 285H
Operating System
Windows® 11 IoT
Windows® 11 Pro
Ubuntu® Linux
Memory
(2) SO-DIMM, DDR5-6400 (Up to 96GB)
Storage
(1) M.2 2280 (256GB, 512GB, 1TB, 2TB, 4TB)
(1) M.2 2242 (256GB, 512GB, 1TB, 2TB)
Graphics
Intel® Arc™ Graphics
Networking
(1) Intel® Ethernet Controller i226-V 2.5G
(1) Intel® Wi-Fi 6E AX211 (Gig+), Bluetooth 5.3
Power Supply
19VDC 120W Power Adapter (U5/U7)
19VDC 150W Power Adapter (U9)
Dimensions (WxDxH)
5.67” x 4.41” x 1.65”
Operating Temperature
0° – 35°C
Ports/Slots

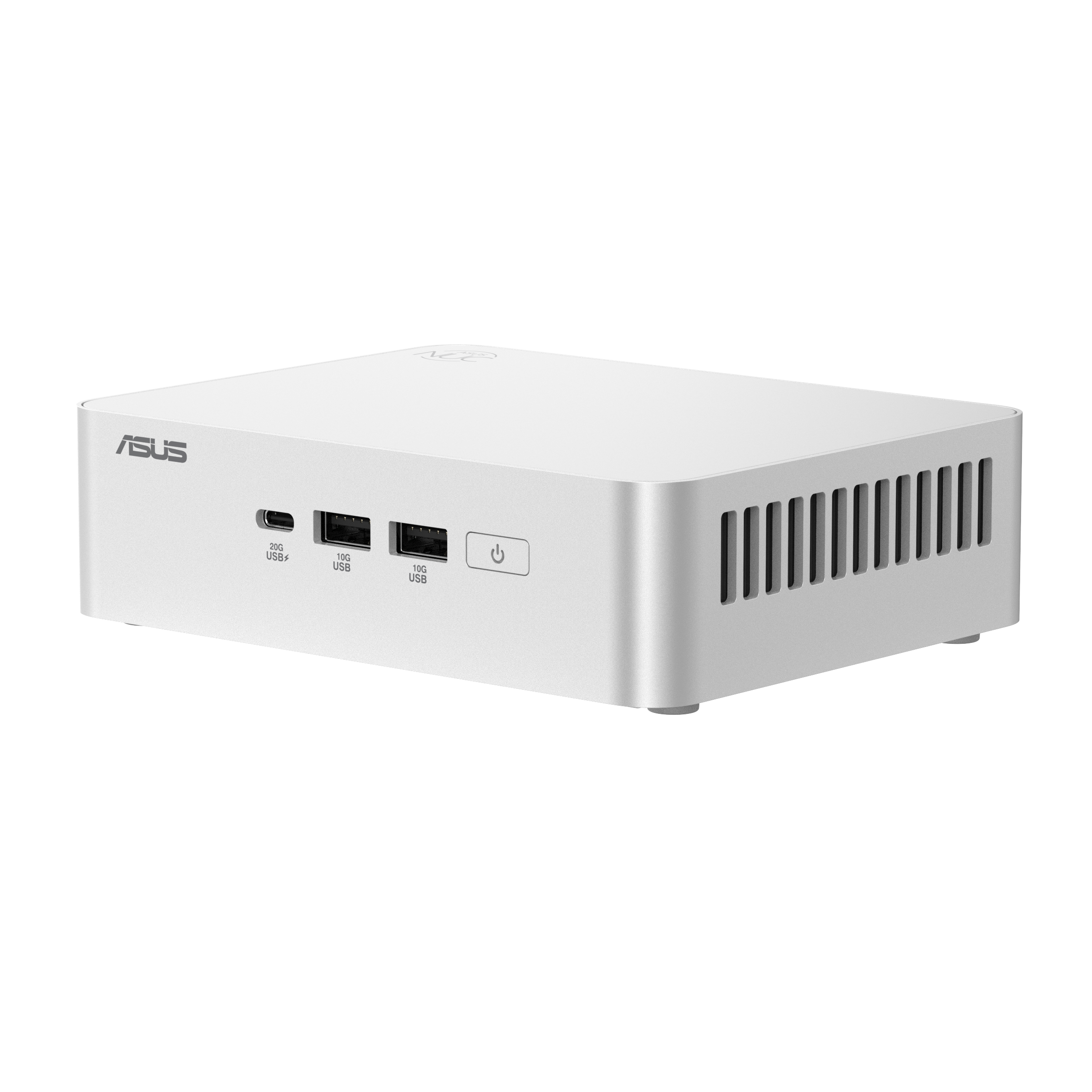

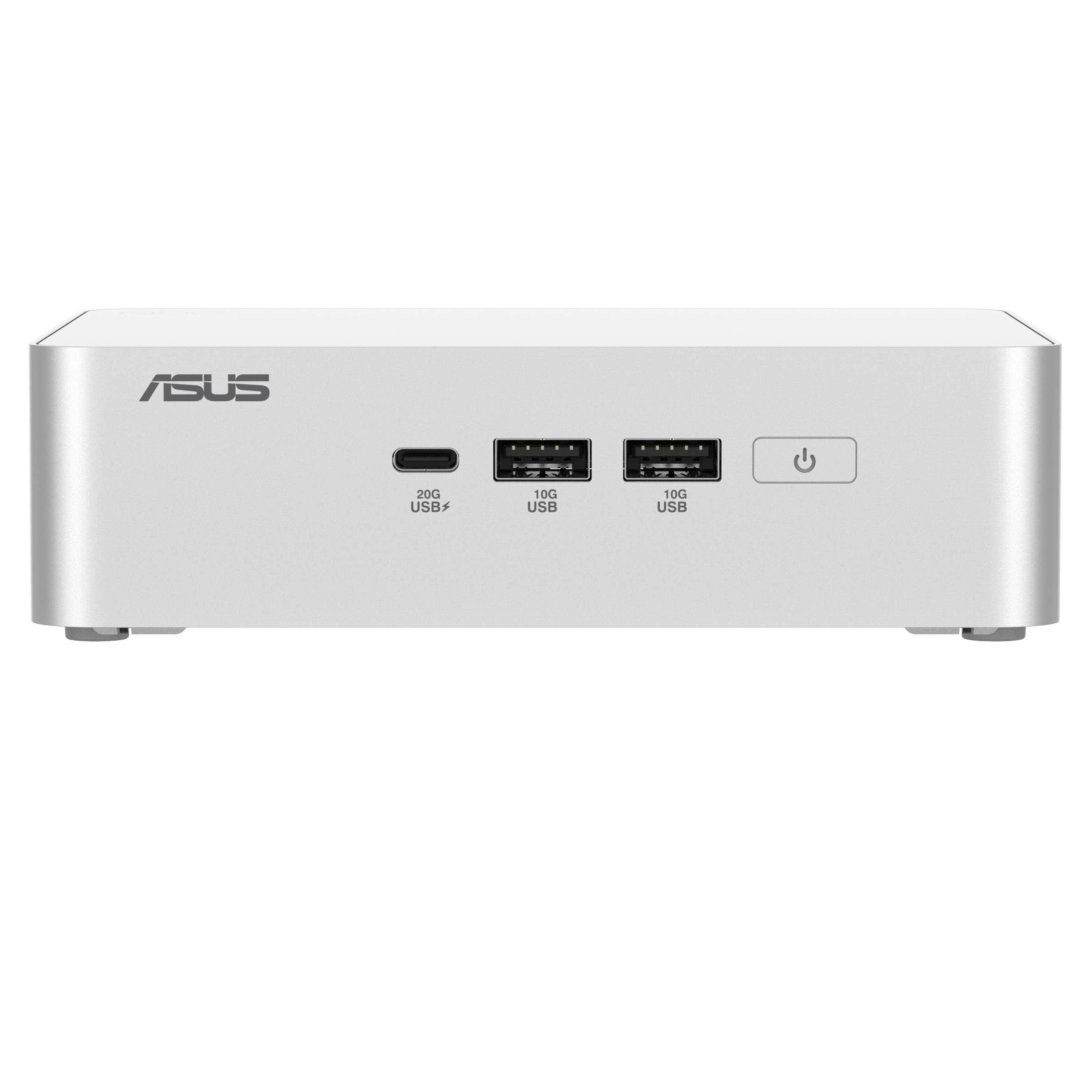

FRONT:
(1) USB 3.2 Gen 2×2, Type-C (20Gbps)
(2) USB 3.2 Gen 2, Type-A

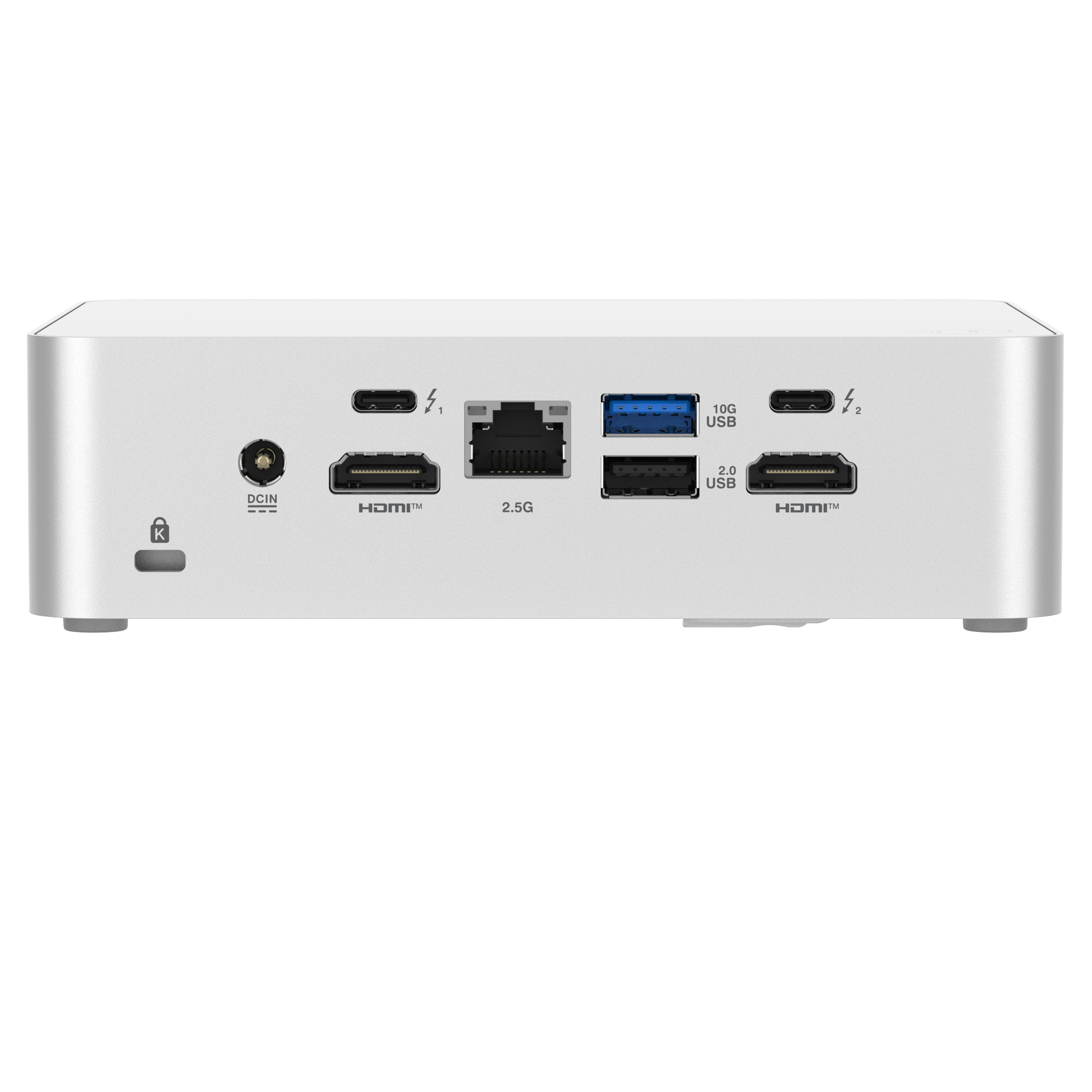

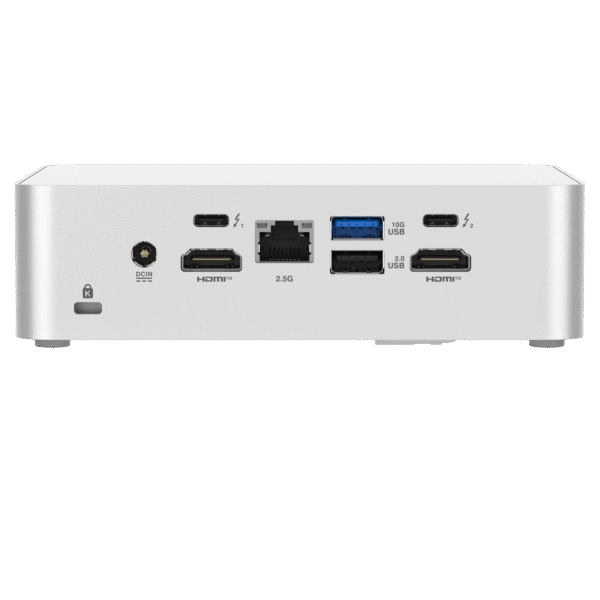

REAR:
(2) Thunderbolt 4, Type-C
(1) USB 3.2 Gen 2, Type-A
(1) USB 2.0, Type-A
(2) HDMI 2.1 (TMDS)
(1) RJ45 LAN
(1) DC-in
(1) Kensington Lock
Warranty
3-Year Depot
