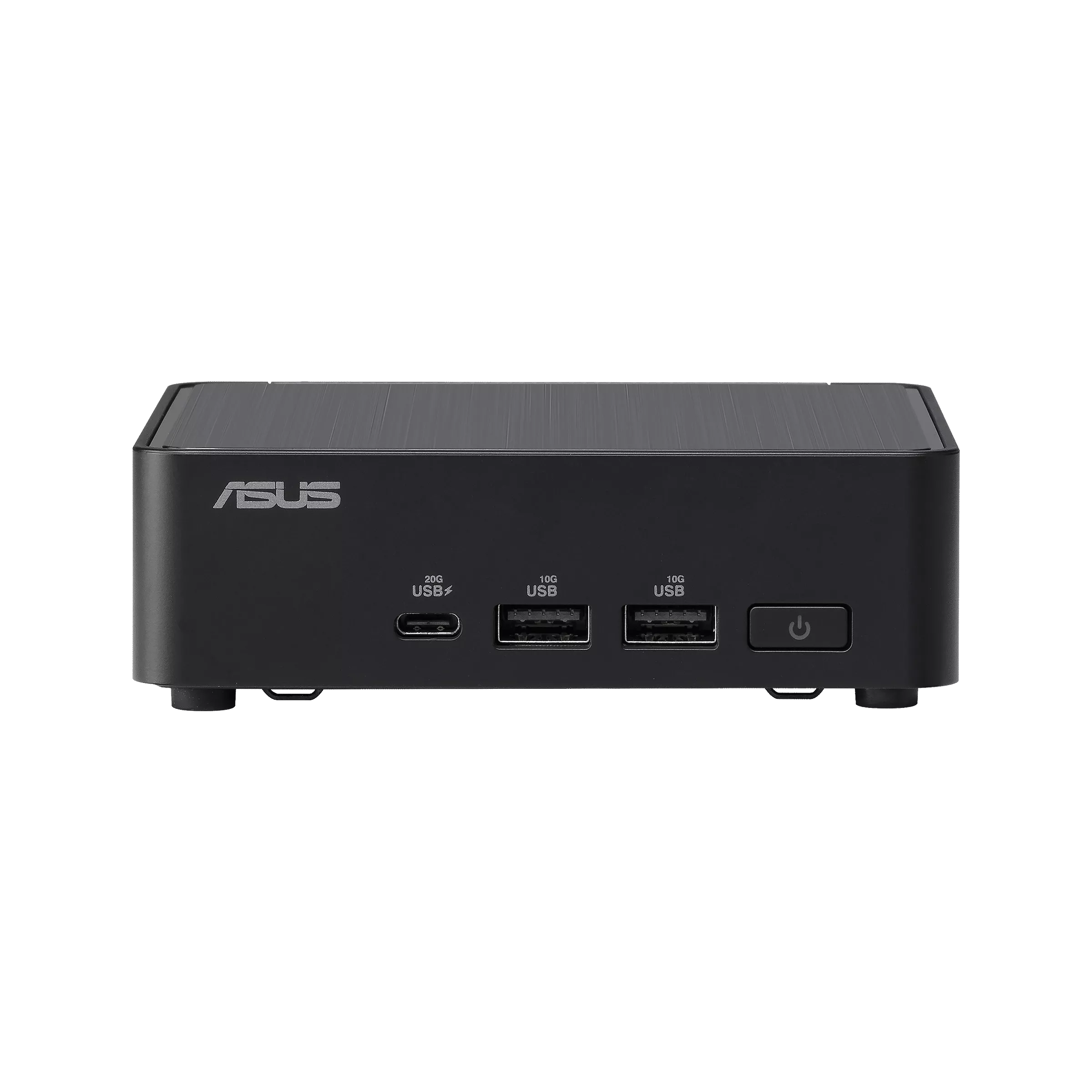

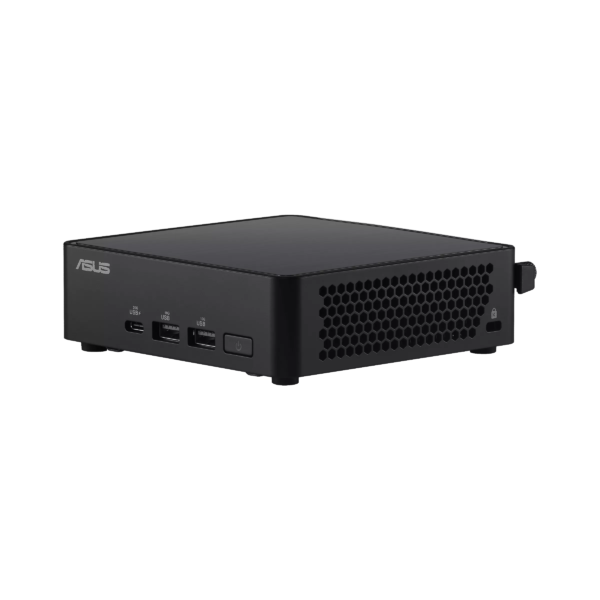

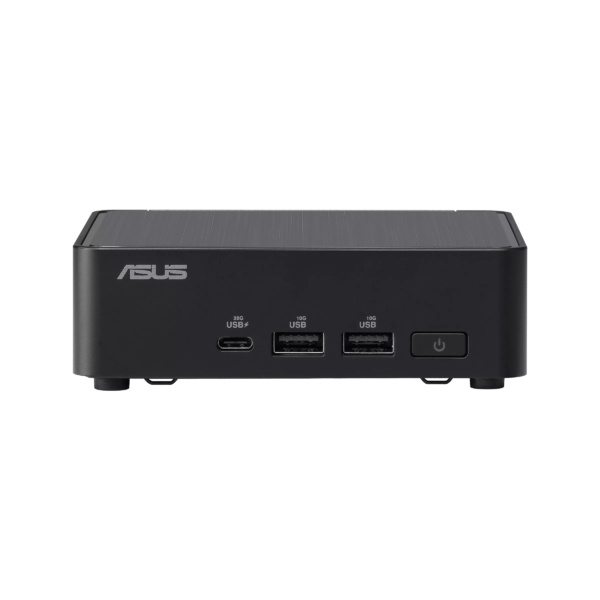

ASUS IoT NUC 15 Pro Mini PC
Product Series: AIOT-NUC-15-PRO
The ASUS NUC 15 Pro combines enterprise reliability with the latest Intel® Core™ Ultra processors to power intelligent edge deployments, AI inferencing, and business-critical workloads. With Intel vPro® Enterprise for robust manageability and security, this 4x4-inch mini-PC is engineered for always-on performance in commercial environments. The integrated Intel® AI Boost NPU enables efficient on-device AI acceleration, while support for DDR5 memory and Thunderbolt™ 4 ensures blazing-fast data throughput. A fanless chassis option and tool-less access make it a flexible, serviceable solution for embedded applications.
- AI-optimized with Intel® Core™ Ultra and built-in NPU
- Supports 24/7 operation in demanding environments
- Four 4K display outputs for immersive visual applications
- Compact and modular with VESA and desktop mounting options
- Preinstalled with Windows® 11 IoT or Ubuntu®
Storage? Sorted.
When calculating storage and performance needs for your project, it's important to know not only the available raw storage, but also the system’s usable storage. This figure accounts for how RAID configuration, disk type, formatting, and performance overhead affect real world capacity.
Management? Simplified.
Velasea's exclusive collaboration with Canopy equips every IronLink® appliance with complimentary Remote Device Management software, allowing for a comprehensive overview of your entire fleet and significantly decreased downtime. Truck rolls? No, thank you!
Processors
Intel® Core™ 3 100U Processor
Intel® Core™ 5 210H Processor
Intel® Core™ 7 240H Processor
Intel® Core™ Ultra 5 225H Processor
Intel® Core™ Ultra 5 235H Processor with vPro
Intel® Core™ Ultra 7 255H Processor
Intel® Core™ Ultra 7 265H Processor with vPro
Operating System
Windows® 11 IoT
Windows® 11 Pro
Ubuntu® Linux
Memory
(2) SO-DIMM, DDR5-6400 (Up to 96GB)
Storage
(1) M.2 2280 (256GB, 512GB, 1TB, 2TB, 4TB)
(1) M.2 2242 (256GB, 512GB, 1TB, 2TB)
Tall Only: Expansion Module Available (M.2 2280)
Graphics
Intel® Arc™ Graphics (Core Ultra)
Intel® Graphics (Core)
Networking
(1) Intel® Ethernet Controller i226-V 2.5G
(1) Intel® Ethernet Controller i226-LM, 2.5G (vPro Only)
(1) Intel® Wi-Fi 7 BE201, Bluetooth 5.4
Power Supply
19VDC 120W Power Adapter (Core Ultra 5/7)
19VDC 90W Power Adapter (Core 3)
Dimensions (WxDxH)
4.61” x 4.41” x 1.46” (Slim)

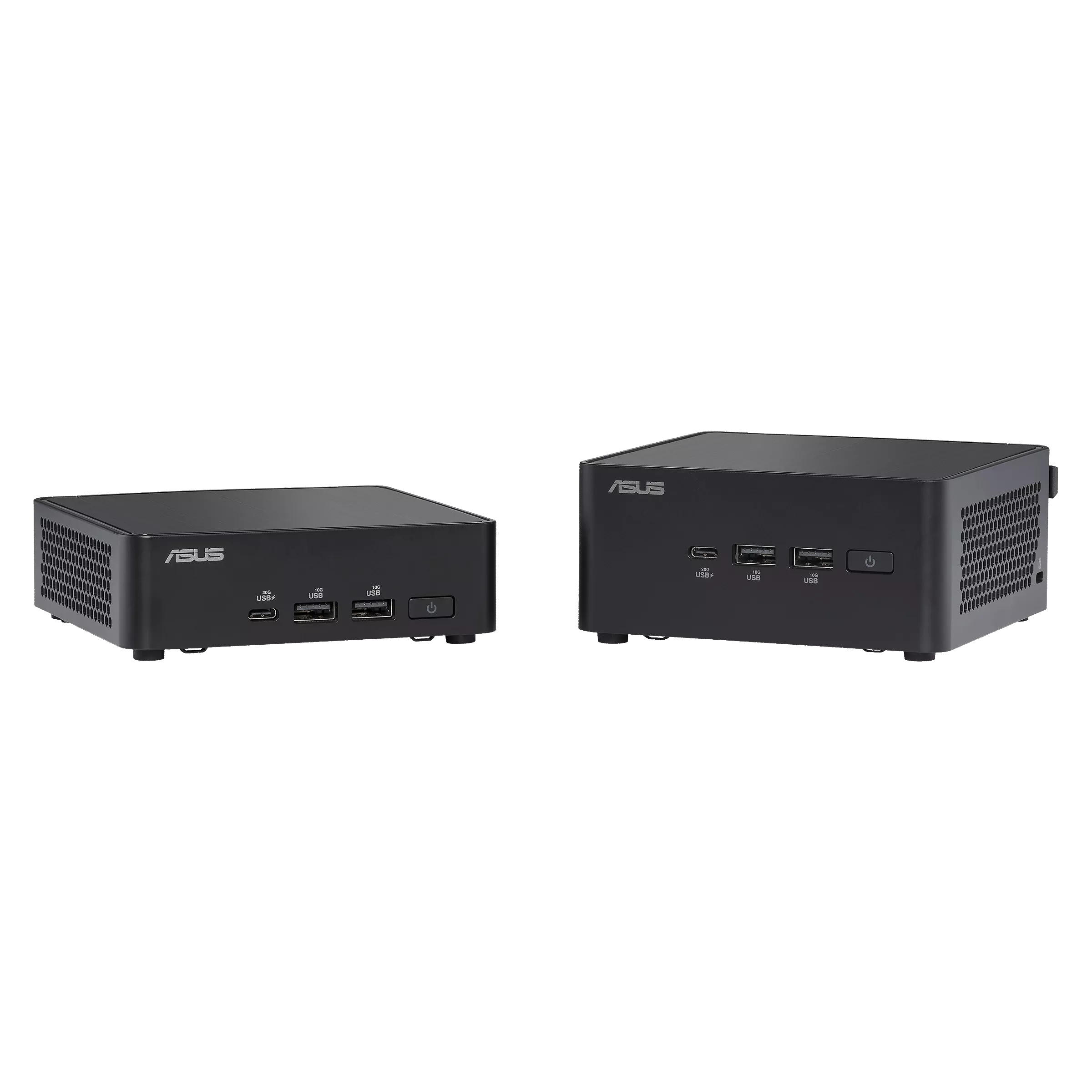

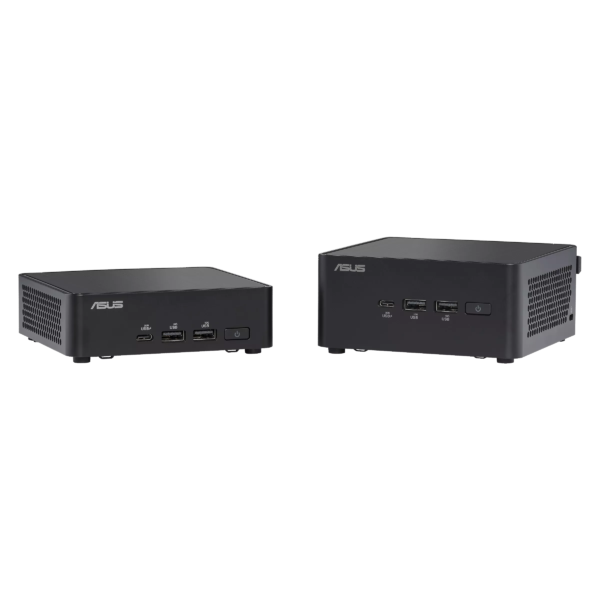

4.6” x 4.4” x 2.13” (Tall)
Operating Temperature
0° – 40°C
Ports/Slots
FRONT:
(1) USB 3.2 Gen 2×2, Type-C (20Gbps)
(2) USB 3.2 Gen 2, Type-A
(1) Kensington Lock
REAR:
(2) Thunderbolt 4, Type-C
(1) USB 3.2 Gen 2, Type-A
(1) USB 2.0, Type-A
(2) HDMI 2.1 (TMDS)
(1) RJ45 LAN
(1) DC-in
Warranty
3-Year Depot
